Blue Water Loft 160 (70MM)

$21,399.00

Free Shipping - No Hidden Fees

  • Popular Uses
  • Difficulty Level
  • Assembly

• Office or Guest Space
• Family Cabin
• Rental Unit
• Retreat Space

3 out of 5

You can do it yourself or choose to have us assemble your structure on top of your provided foundation base.
Assembly packages include assembly in one day plus roof panels supplied and installed.

$1500 down, $263/month delivered
$1500.00 down, $339/month delivered and installed

Contact us for financing information.


Spacious, Flexible, and Memorable!

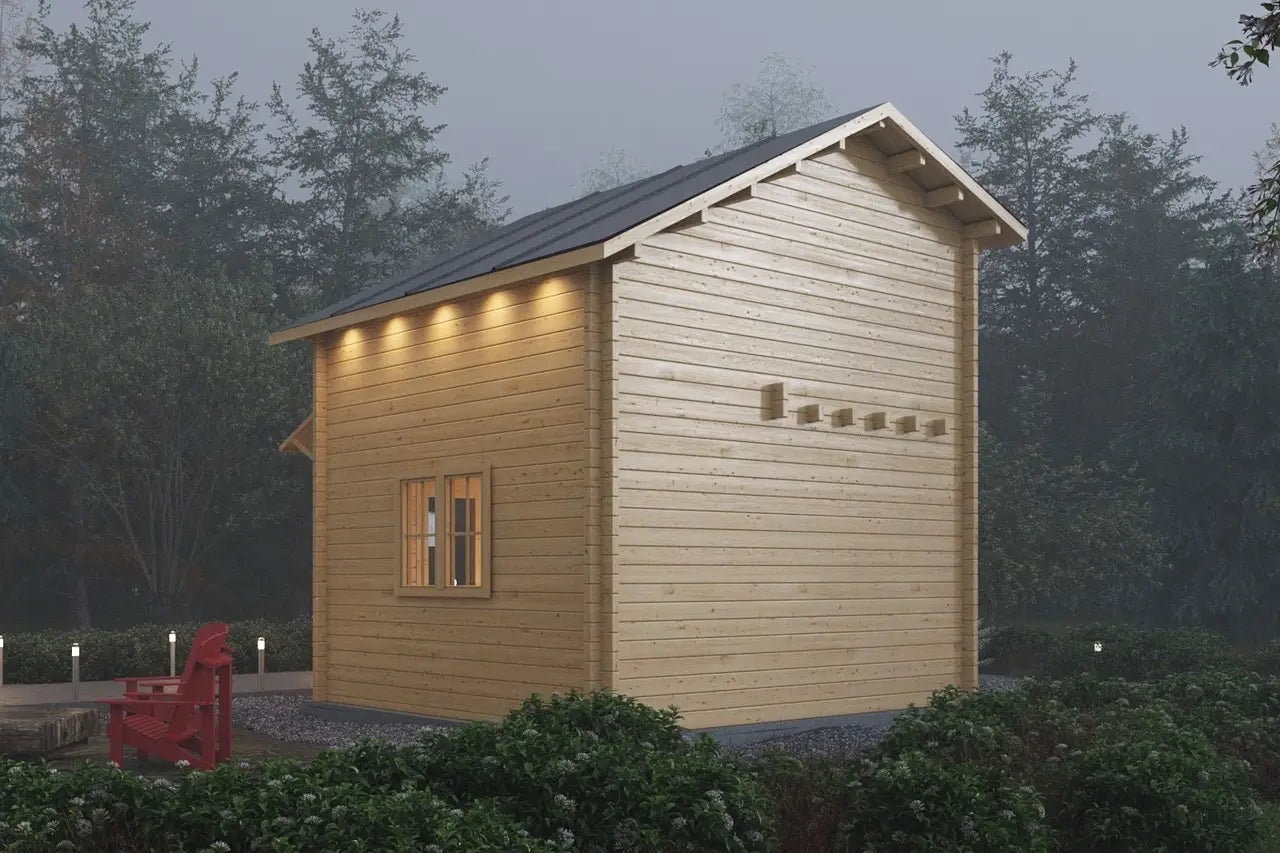

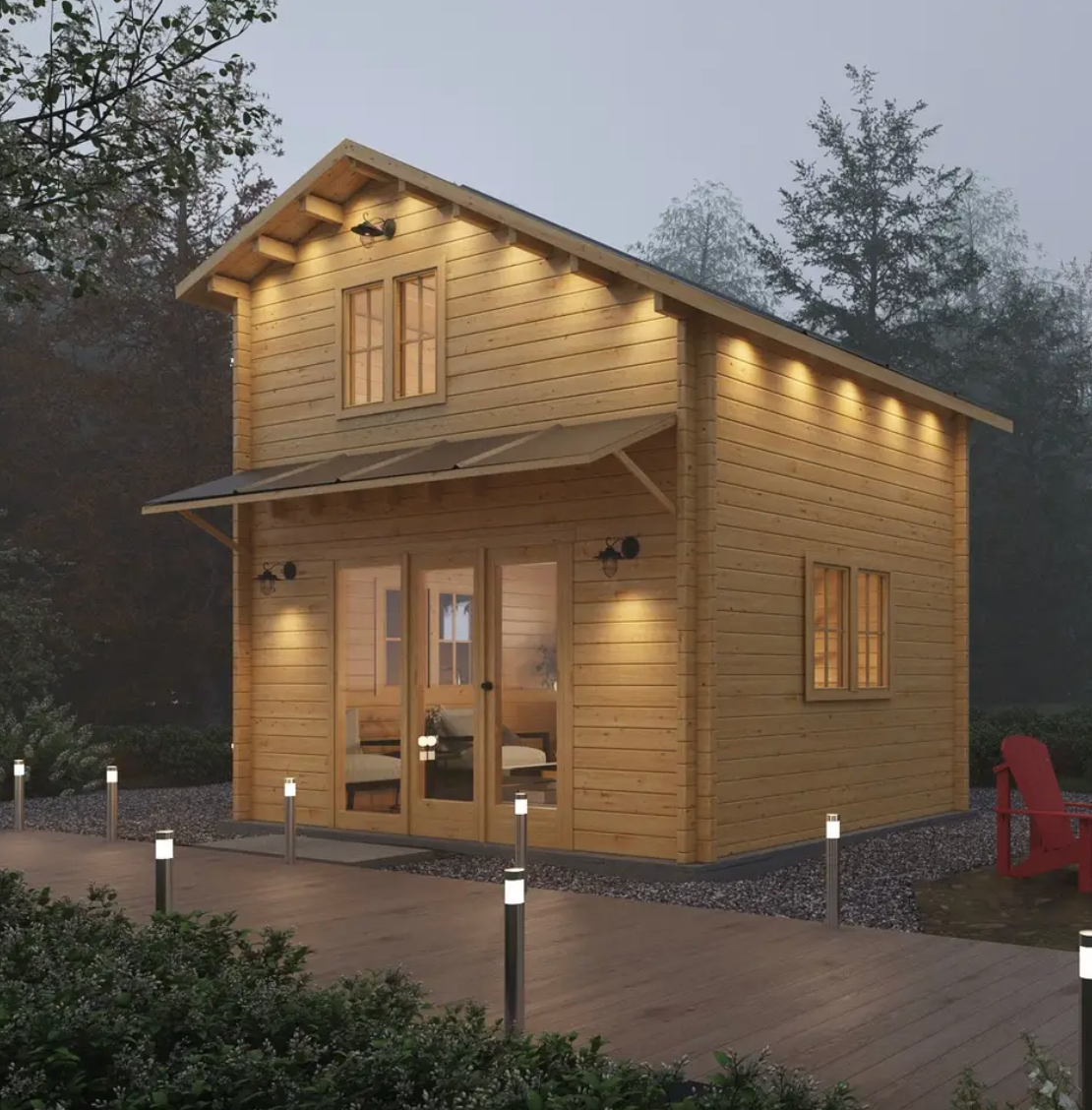

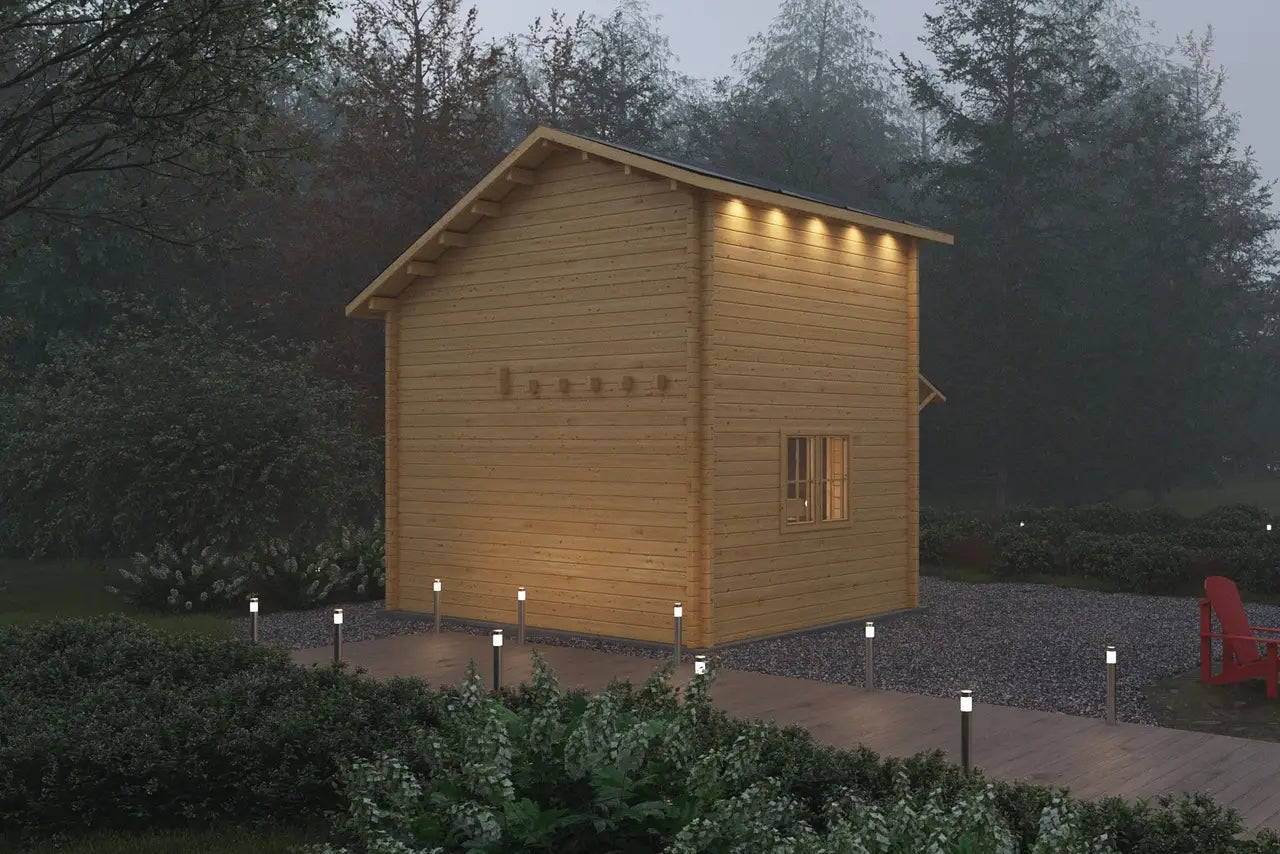

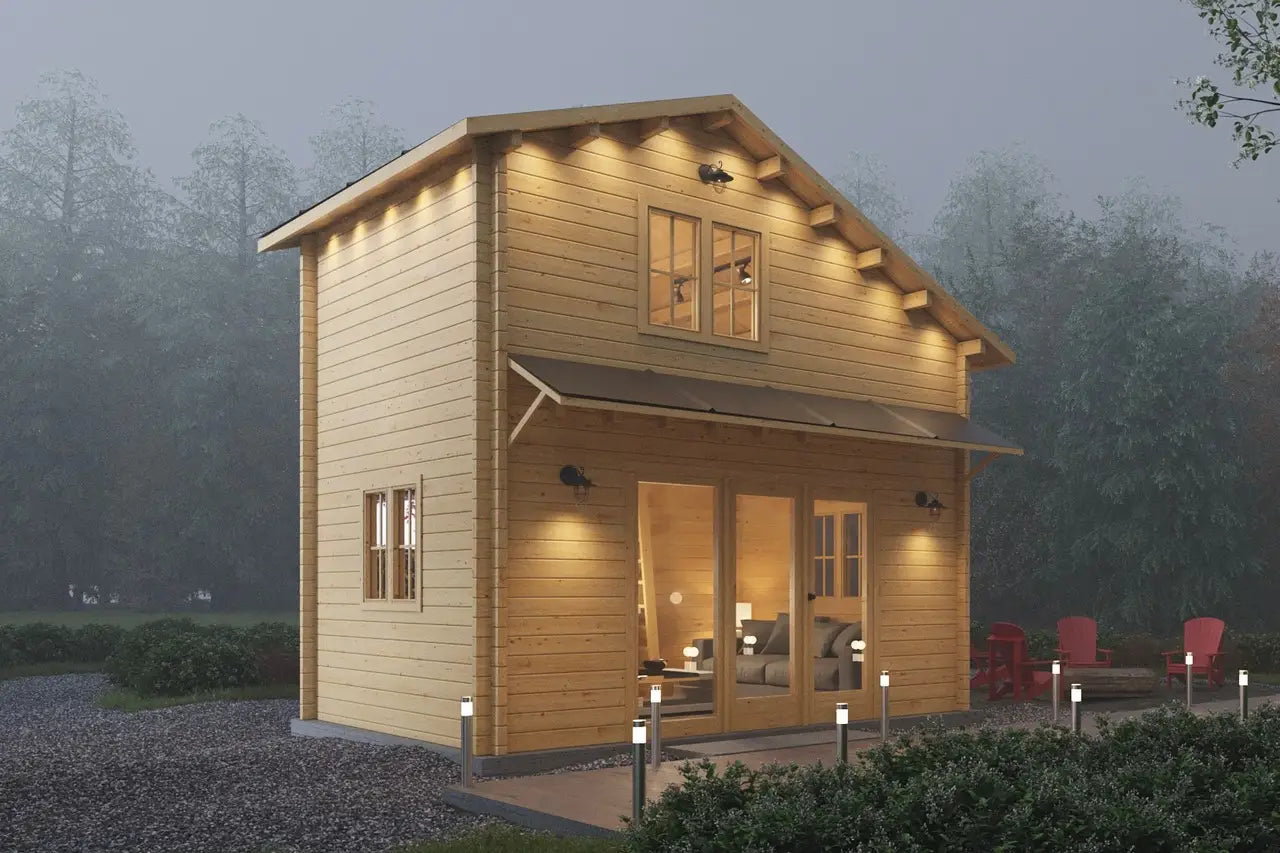

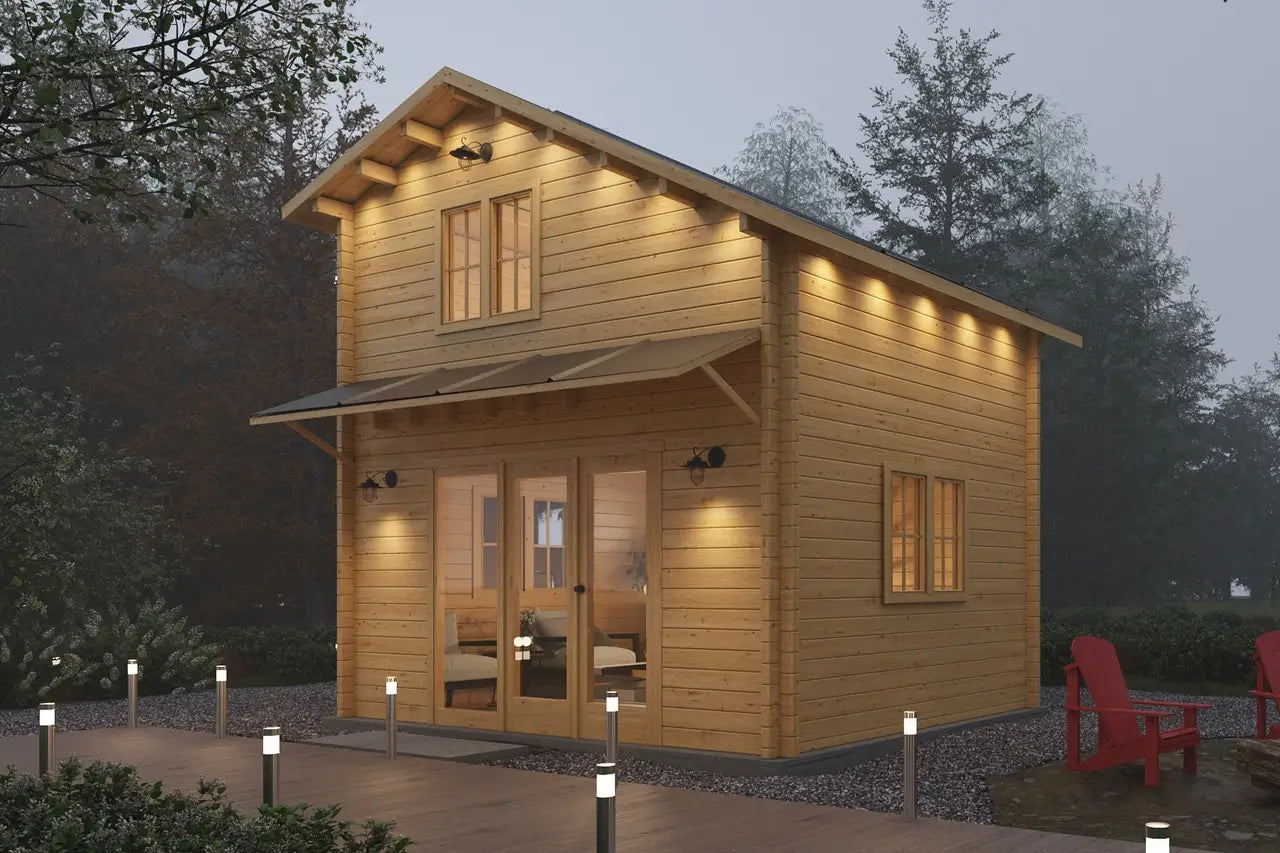

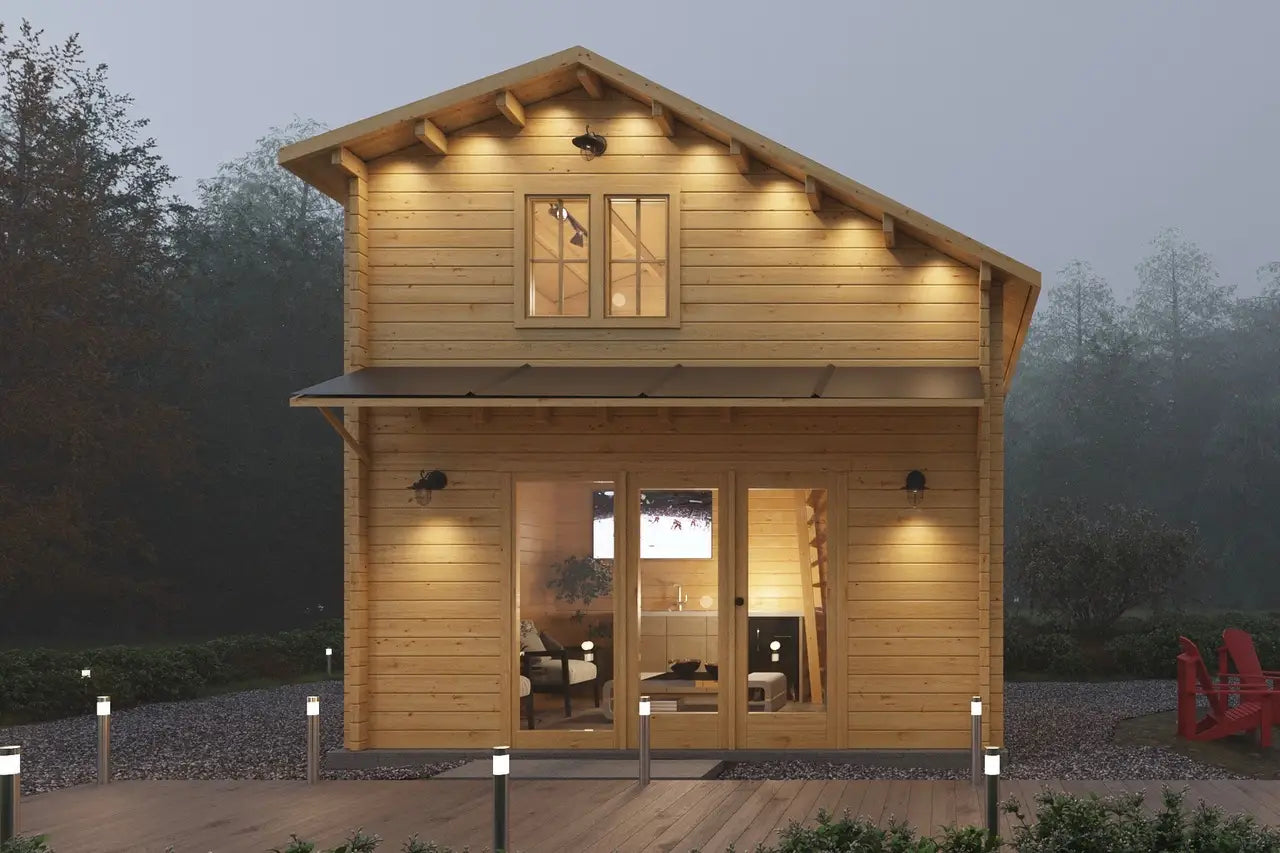

The Blue Water Loft 160 in extra thick 70mm thick log!

The Blue Water Loft 160 is a spectacular addition to any property and now comes in an extra thick Nordic Spruce 70mm thick log system for added thermal mass and strength. This super duty 70mm log is sure to exceed all your expectations and needs! If you do not need as robust a bungalow, check out the 38mm version in the product line.

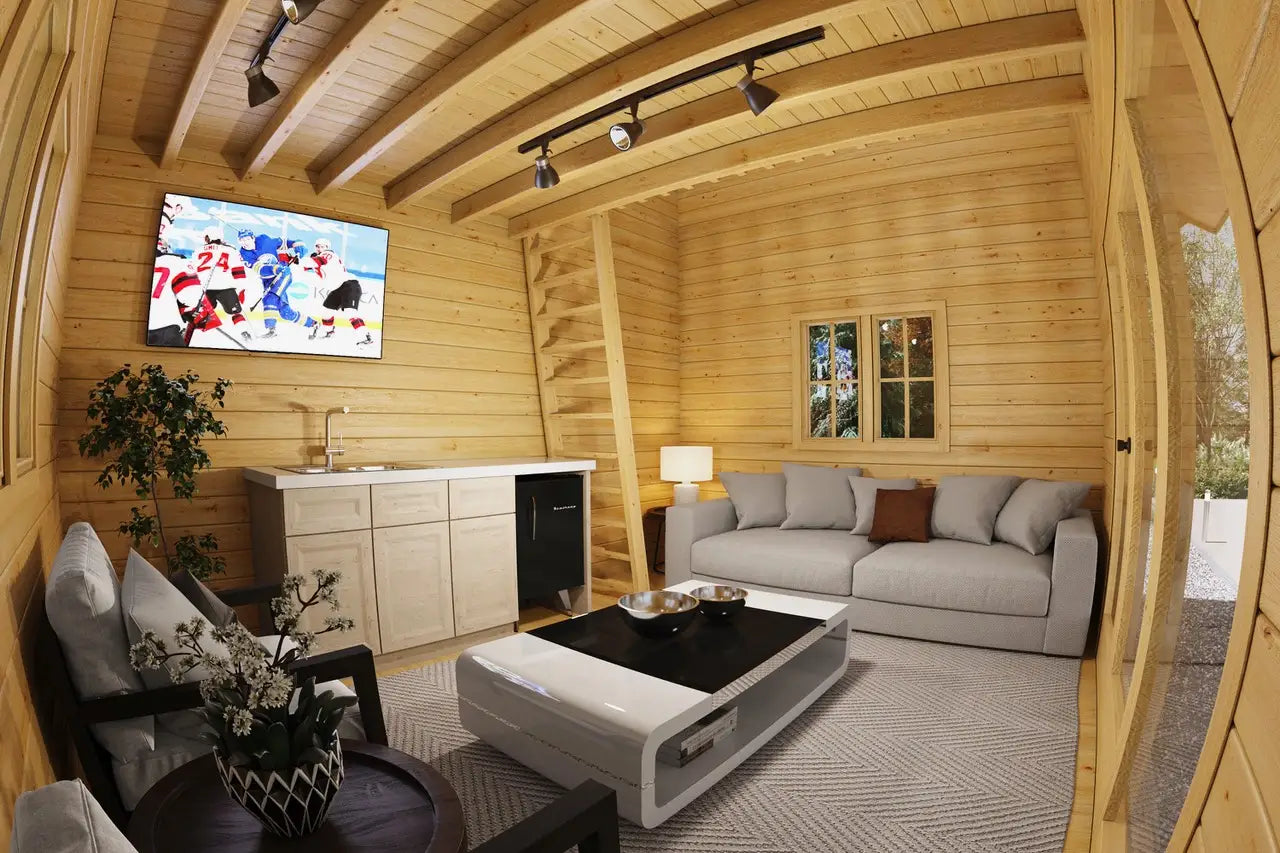

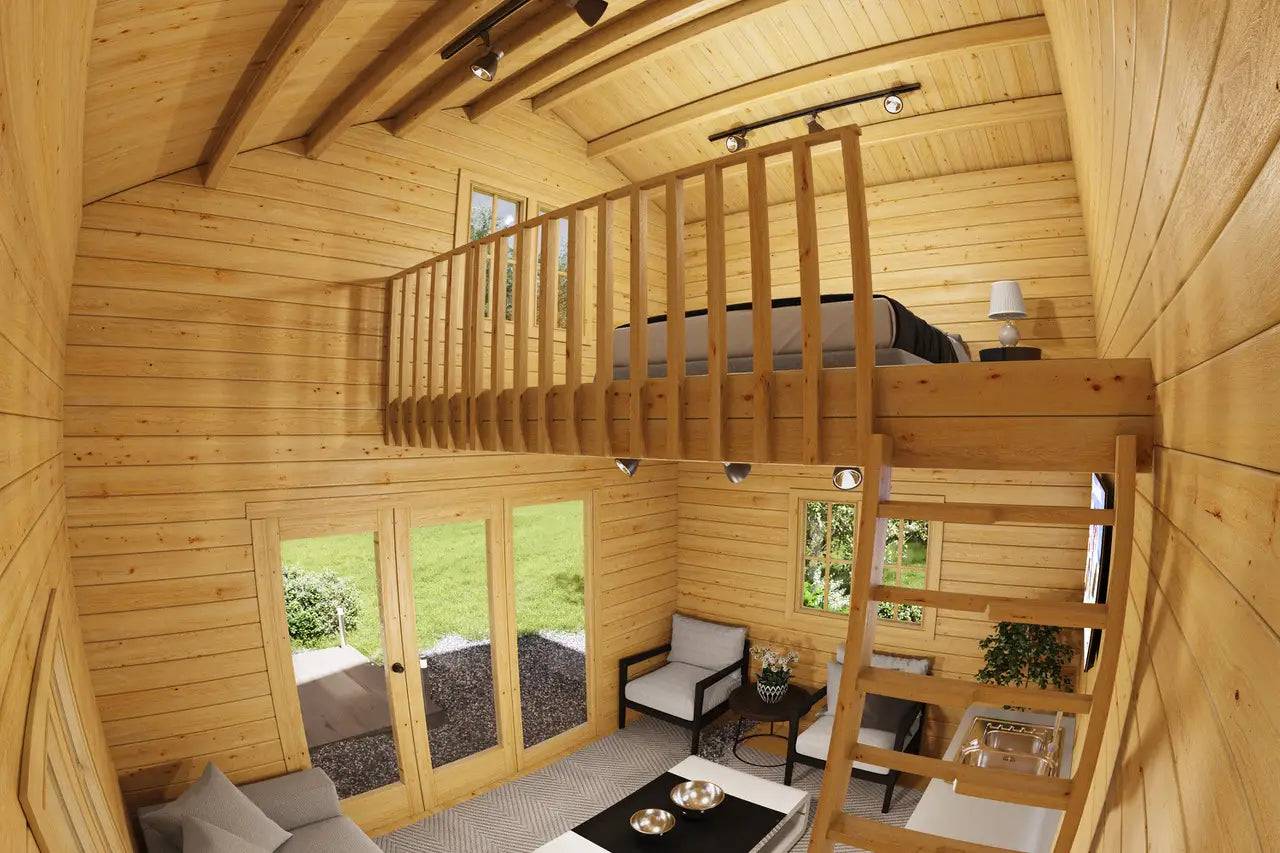

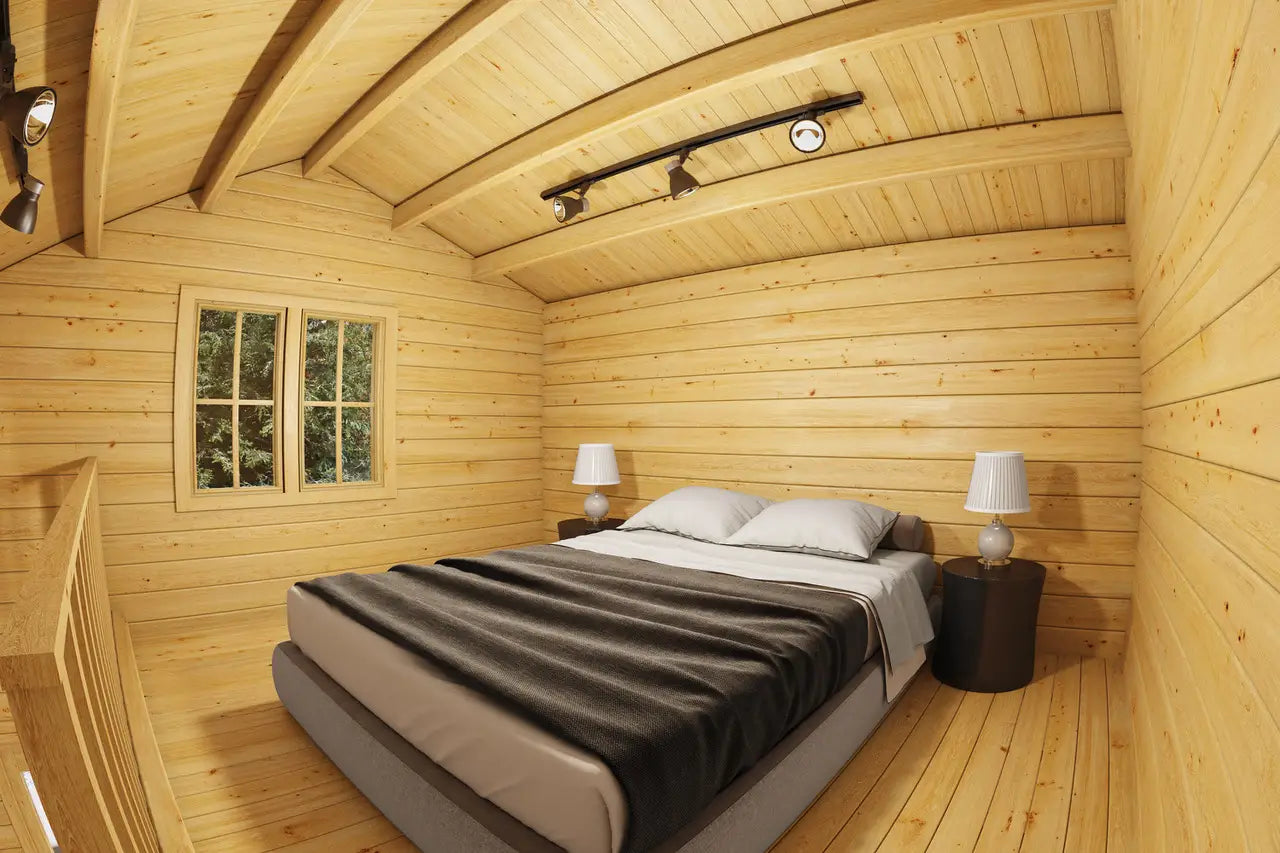

This beautiful new model features 160 square feet of floor space that measures 11” deep x 14’-6” long. The cabin offers a 15’ high offset slope vaulted ceiling which gives the structure an incredible sense of volume. This structure also boasts a massive 11’-2” x 8’ loft that has extra tall 7’-4” standing headroom and full-size operational window! The cabin comes with a standard loft ladder that is upgradable to our new patent pending Stair-Wall folding ladder.

This new cabin features our famous inter-stack log system and utilizes a contemporary design with square end logs. Also, standard are our premium double-pane windows and doors and solid pine tongue and groove floors and ceilings! The Blue Water Loft 160 is bright, spacious and made to last for generations!





Have questions?

Get in touch with us at any time.

Blue Water Loft 160 (70MM)

$21,399.00
Specifications

STRUCTURE SQUARE FOOTAGE:
160 SF plus 89 SF Loft

STRUCTURE DIMENSION:
Exterior Footprint: 11’ D x 14’-6" W
Interior: 10’-8” D x 14’-2" W + Loft 10’-8” W x 8’ D (7’-2” headroom)
Height: 14’-4"

ROOF DIMENSIONS:
Side A: 11’-2” L x 13’-2” W
Side B: 7’-3” L x 13’-2” W
Roof Pitch - 9/12

Building Permit Information:

Ground floor footprint is 160 SF and loft is 89 SF
Permit MAY or MAY NOT needed depending on your defined use for the structure.
Check local bylaws.

Be sure to always explore your local by-law and setback requirements before starting any project to determine what is permissible and what size structures are considered to not require a building permit in your area.

Materials

TIMBER MATERIAL USED:
Premium Spruce

TIMBER CHARACTERISTICS:
Dense grain softwood.
Light blonde appearance and very aromatic.

WINDOWS AND DOORS:
Double pane windows and doors.
Window screens included.

LOG SYSTEM:
Exclusive Inter-Stack Log System

LOG SYSTEM FEATURES:
Minimal fasteners required.
Double tongue & groove profile with cross locking corners

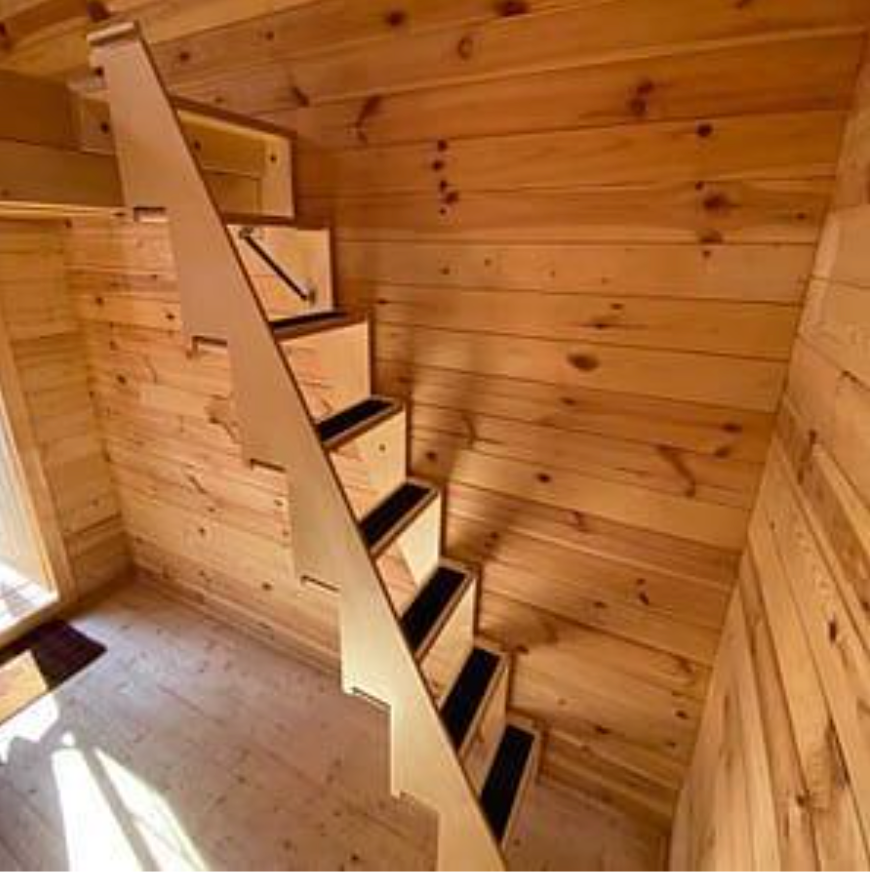

STAIR-WALL™

$1,699.00

FOLD FLAT WALL LADDER UPGRADE 87 3/4”

Upgrade from the included ladder in your bunkie to Sawmill Structures™ very own patent pending wall mounted fold out ladder!
The Stair Wall™ is the ultimate space saving ladder system upgrade for lofted structures.

 Add for $1,699.00
